Zen Pergola Bracket Kit for Attached Pergola With Roof Rafters — Up to 24' x 24'

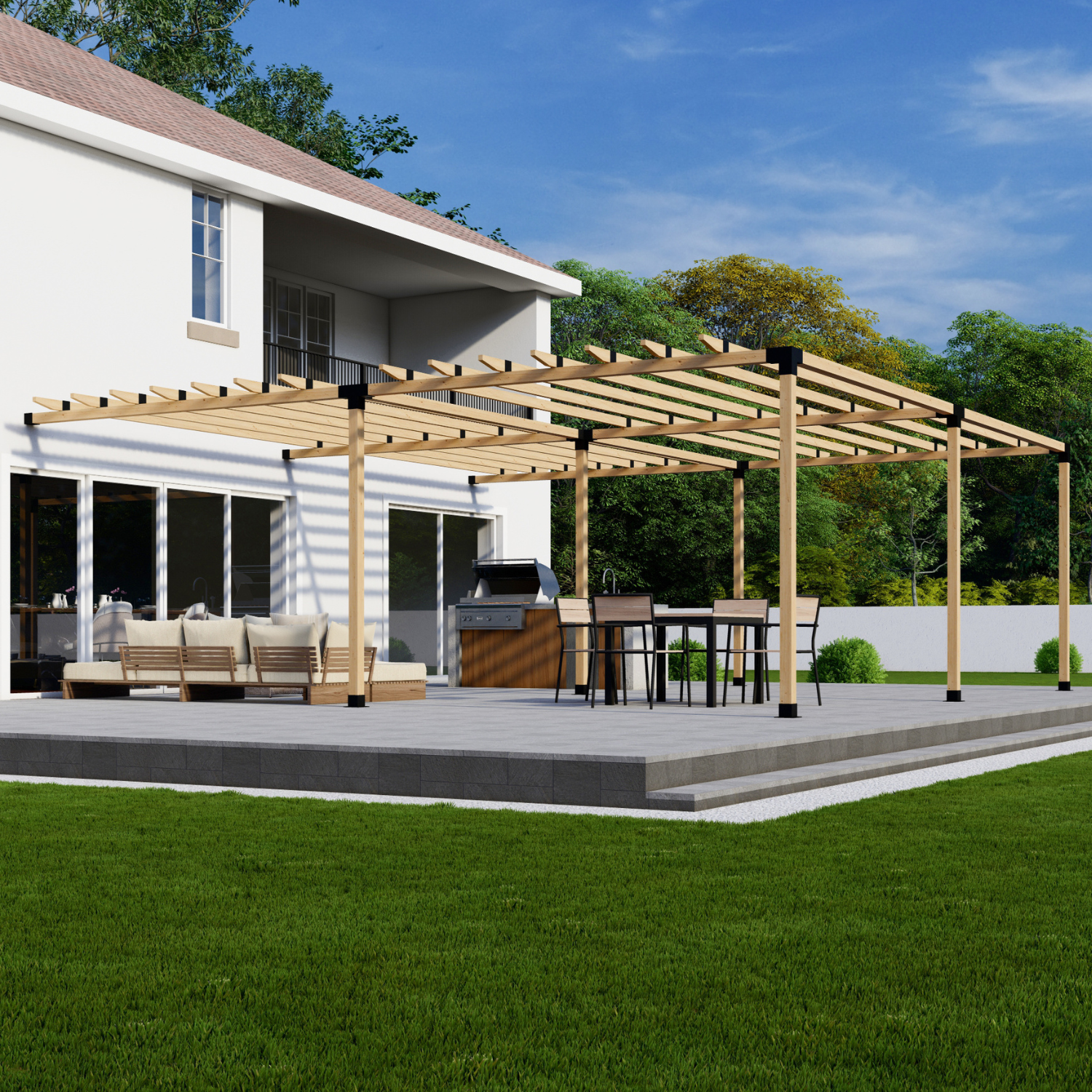

Create an attached pergola with a traditional rafter roof design using the Zen Pergola Bracket Kit. Designed for pergolas attached to a house with six posts, the kit supports four-block pergola layouts in any size up to 24' x 24'.

Choose between 4x4 and 2x4 brackets or 6x6 and 2x6 brackets to match the common lumber sizes used for the project. The roof design uses traditional rafters positioned atop the roof beams, with optional overhangs.

Key Features

Attached Pergola Design: Designed for an attached-to-house pergola configuration with six posts.

Pergola Size: Four-block design supporting any pergola size up to 24' x 24'.

Bracket Options: Choose 4x4 and 2x4 brackets or 6x6 and 2x6 brackets.

Traditional Rafter Roof: Designed for traditional roof rafters positioned atop the roof beams, with optional overhangs.

Lumber Compatibility: Brackets are made to fit common lumber sizes including 4x4s, 6x6s, 2x4s, and 2x6s.

Steel Construction: The brackets are made with 12-gauge steel for the 6x6 size and 14-gauge steel for all other sizes.

Laser-Cut and Laser-Welded: Brackets are laser-cut and laser-welded.

Weather Coating: The brackets feature a weather coating designed to withstand extreme conditions.

Pre-Drilled Holes: Brackets include pre-drilled holes for securing wood and accessories.

Warranty: The brackets are backed by a 5-year warranty.

Product Specifications

Pergola Type: Attached to house with 6 posts.

Pergola Layout: 4 blocks.

Maximum Pergola Size: Up to 24' x 24'.

Roof Style: Traditional rafters atop the roof beams with optional overhangs.

Bracket Sizes: 4x4 and 2x4, or 6x6 and 2x6.

Steel Gauge: 12-gauge for 6x6 brackets and 14-gauge for all other sizes.

Bracket Construction: Laser-cut and laser-welded steel.

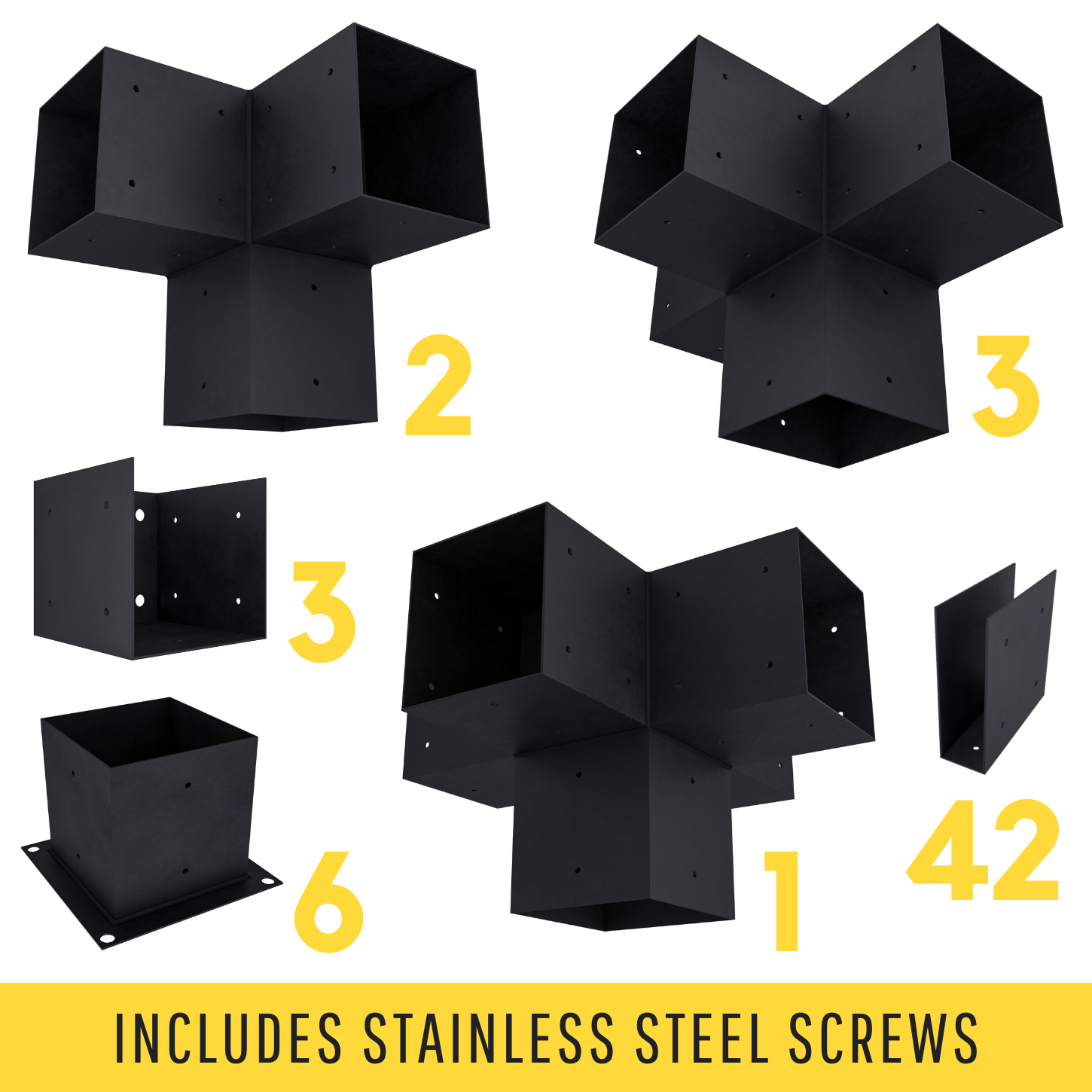

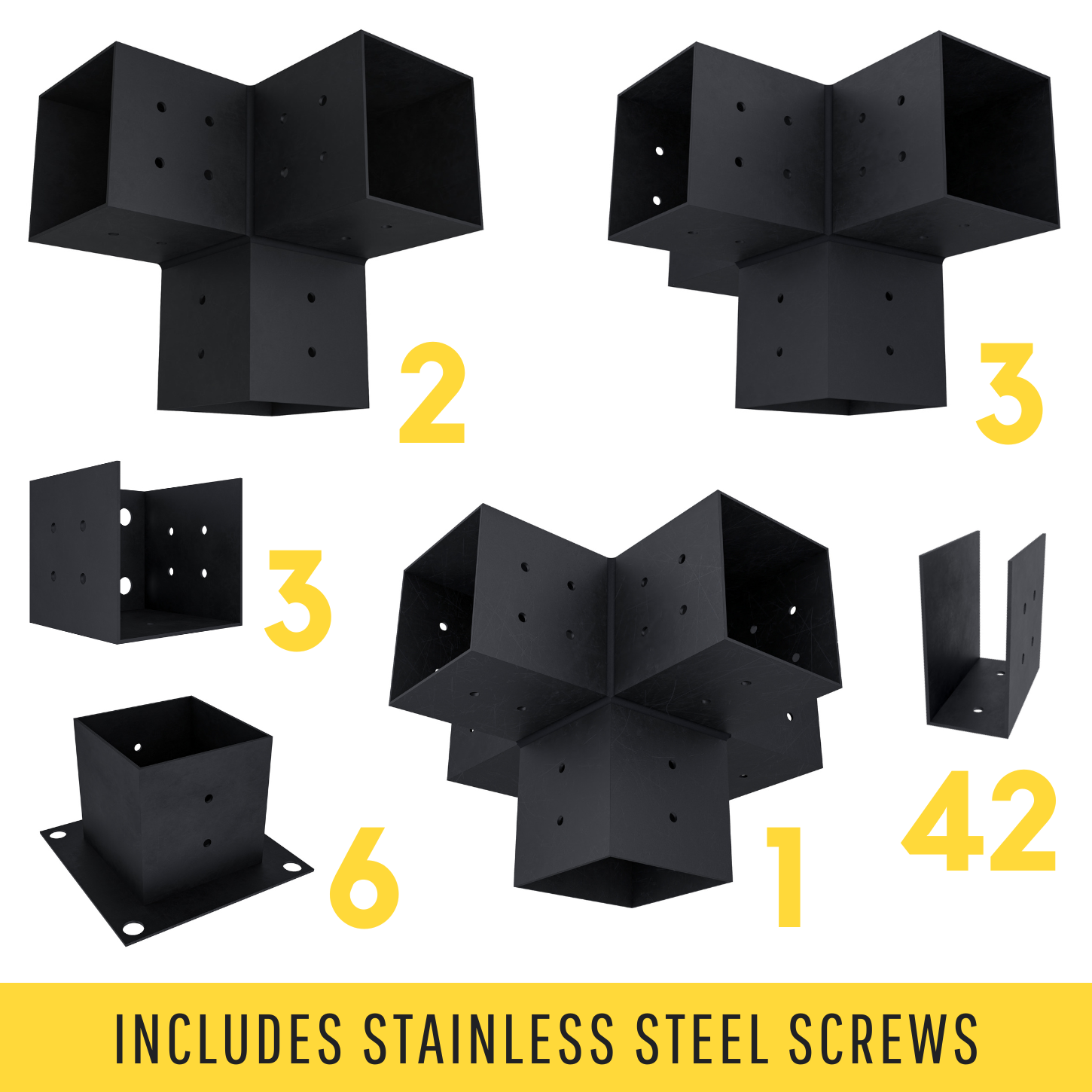

What's Included

Post Base Brackets: 6x post base brackets.

Wall Mount Brackets: 3x wall mount brackets.

Corner Brackets: 2x corner 3-arm brackets.

Middle Brackets: 3x middle 4-arm brackets.

Central Bracket: 1x central 5-arm bracket.

Roof Rafter Brackets: 42x roof rafter brackets.

Wood Screws: Stainless steel #12 wood screws.

Installation and Compatibility

Lumber: Lumber is not included and must be purchased separately.

Anchoring Hardware: Anchoring hardware for the post base brackets and wall mount brackets is not included and must be purchased separately.

Securing Screws: Screws are included in the kit.
