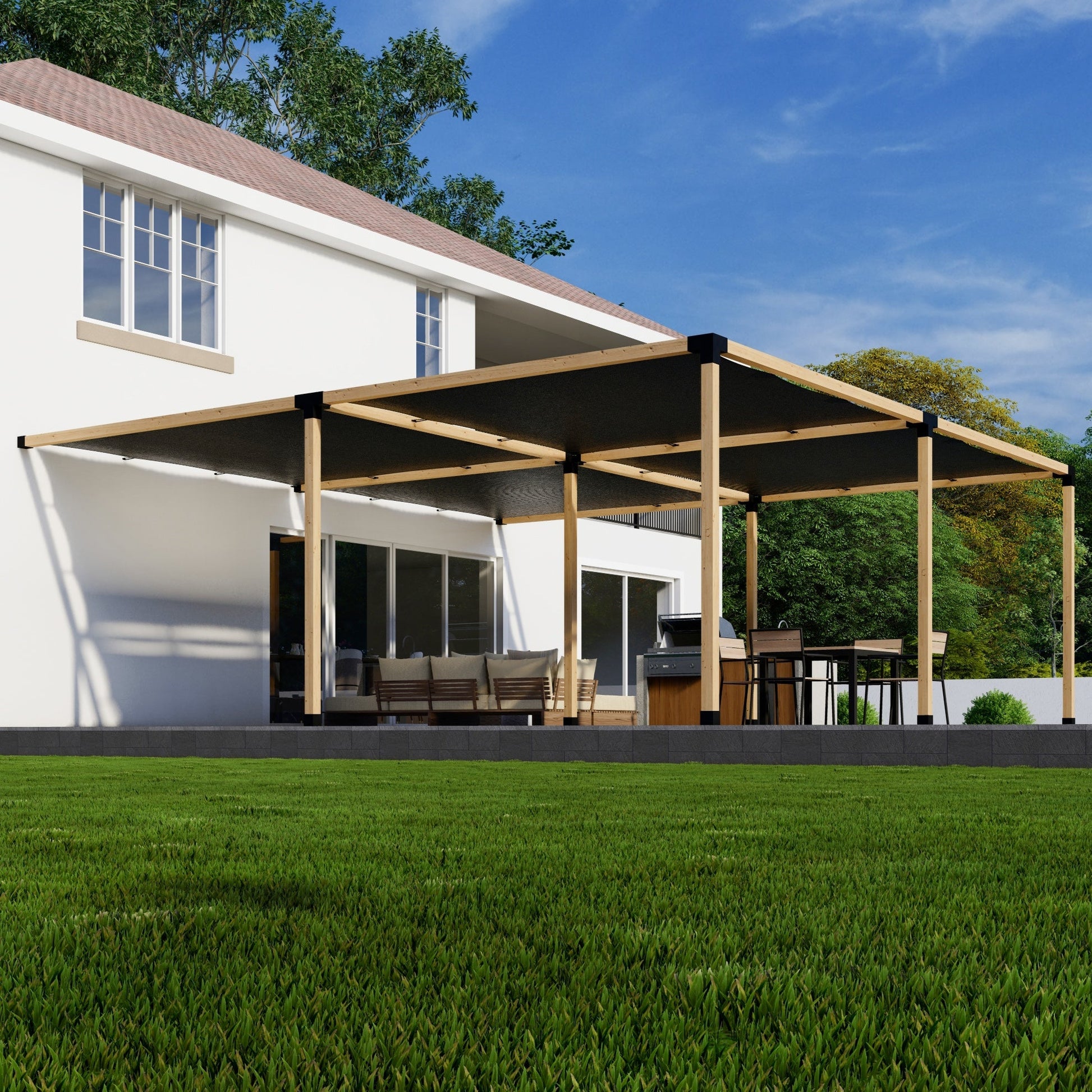

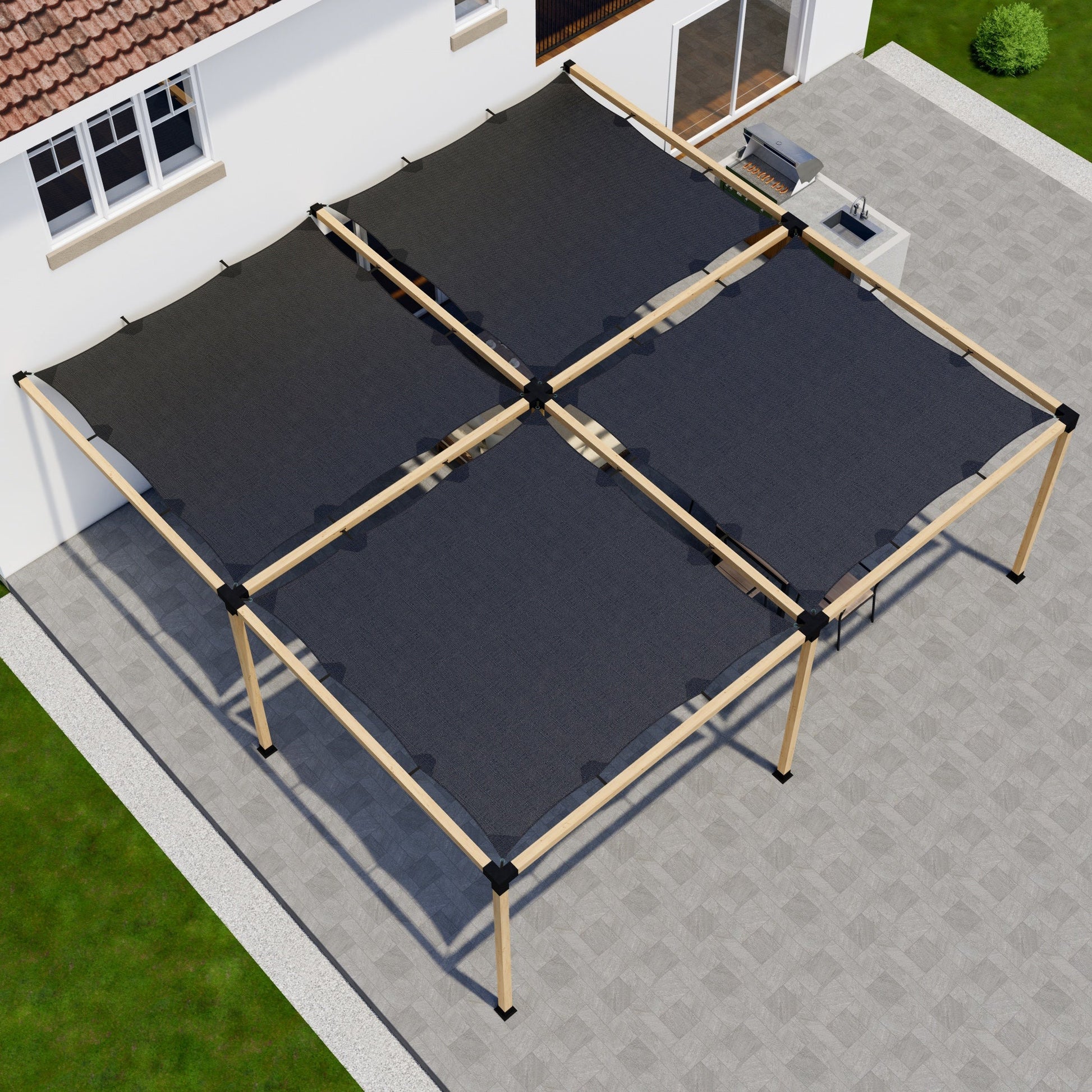

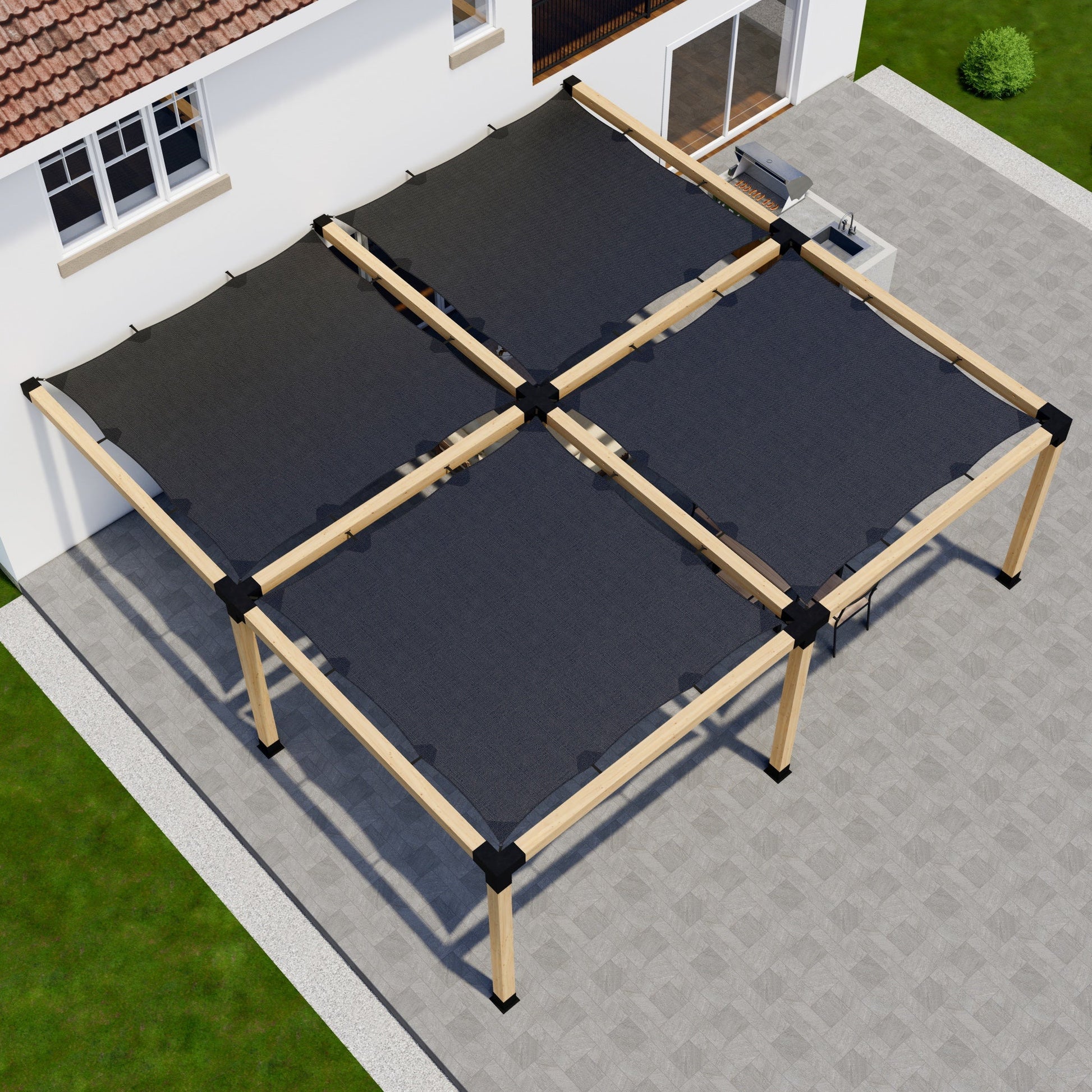

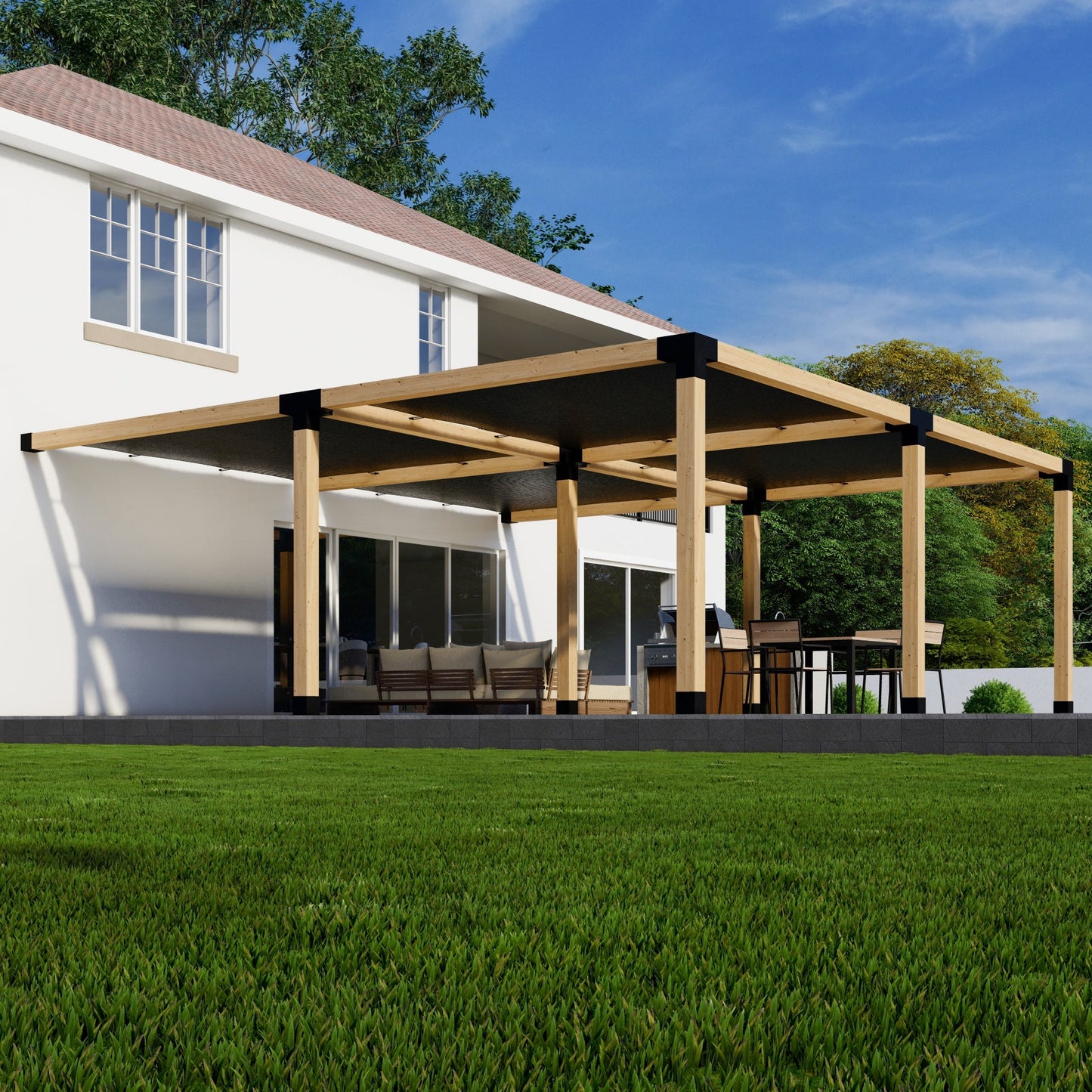

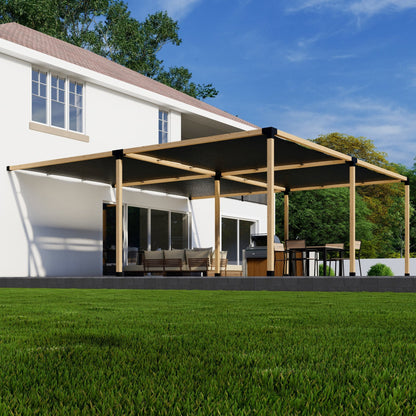

DIY Attached Pergola Kit with Shade Canopies — Up to 24' x 24'
Create an attached pergola with a six-post configuration using this DIY pergola kit. Designed for four-block pergola layouts up to 24' x 24', the kit provides the brackets, shade canopies, mounting hardware, and stainless steel wood screws needed for the components included in the kit.
Choose between 4x4 or 6x6 post base brackets and select from six shade canopy sizes. The shade canopies are made from fade-resistant 180 GSM HDPE knitted fabric and block up to 95% of harmful UV rays while allowing rain to pass through to help prevent pooling.
Key Features
Attached Pergola Design: Designed for pergolas attached to a house with six posts.
Pergola Size: Four-block configuration supporting any size up to 24' x 24'.
Post Bracket Options: Choose 4x4 or 6x6 brackets.
Shade Canopy Options: Choose from 8x8, 8x10, 8x12, 10x10, 10x12, or 12x12 canopy sizes.
UV Protection: Shade canopies block up to 95% of harmful UV rays.
HDPE Fabric: Canopies are made from fade-resistant 180 GSM High-Density Poly-Ethylene knitted fabric.
Semi-Permeable Design: The canopy fabric is semi-permeable to help prevent rain from pooling on top.
Canopy Straps: Each side of the canopy has four straps designed to keep the canopy tight and prevent drooping.
Pre-Drilled Brackets: Brackets feature pre-drilled holes for securing wood and accessories.
Bracket Construction: Zen Pergola Brackets are laser-cut and laser-welded.
Steel Construction: 6x6 brackets use 12-gauge steel, while all other sizes use 14-gauge steel.
Weather Coating: Brackets feature a weather coating designed to withstand extreme conditions.
Product Specifications
Pergola Type: Attached to house.
Post Configuration: Six posts.
Pergola Layout: Four blocks.
Maximum Pergola Size: Up to 24' x 24'.
Bracket Sizes: 4x4 or 6x6.
Canopy Sizes: 8x8, 8x10, 8x12, 10x10, 10x12, or 12x12.
Canopy Material: 180 GSM High-Density Poly-Ethylene knitted fabric.
Canopy Construction: Fade-resistant and semi-permeable.
Canopy Measurement: Canopies measure 4 inches shorter than the indicated size to allow room for mounts and straps.

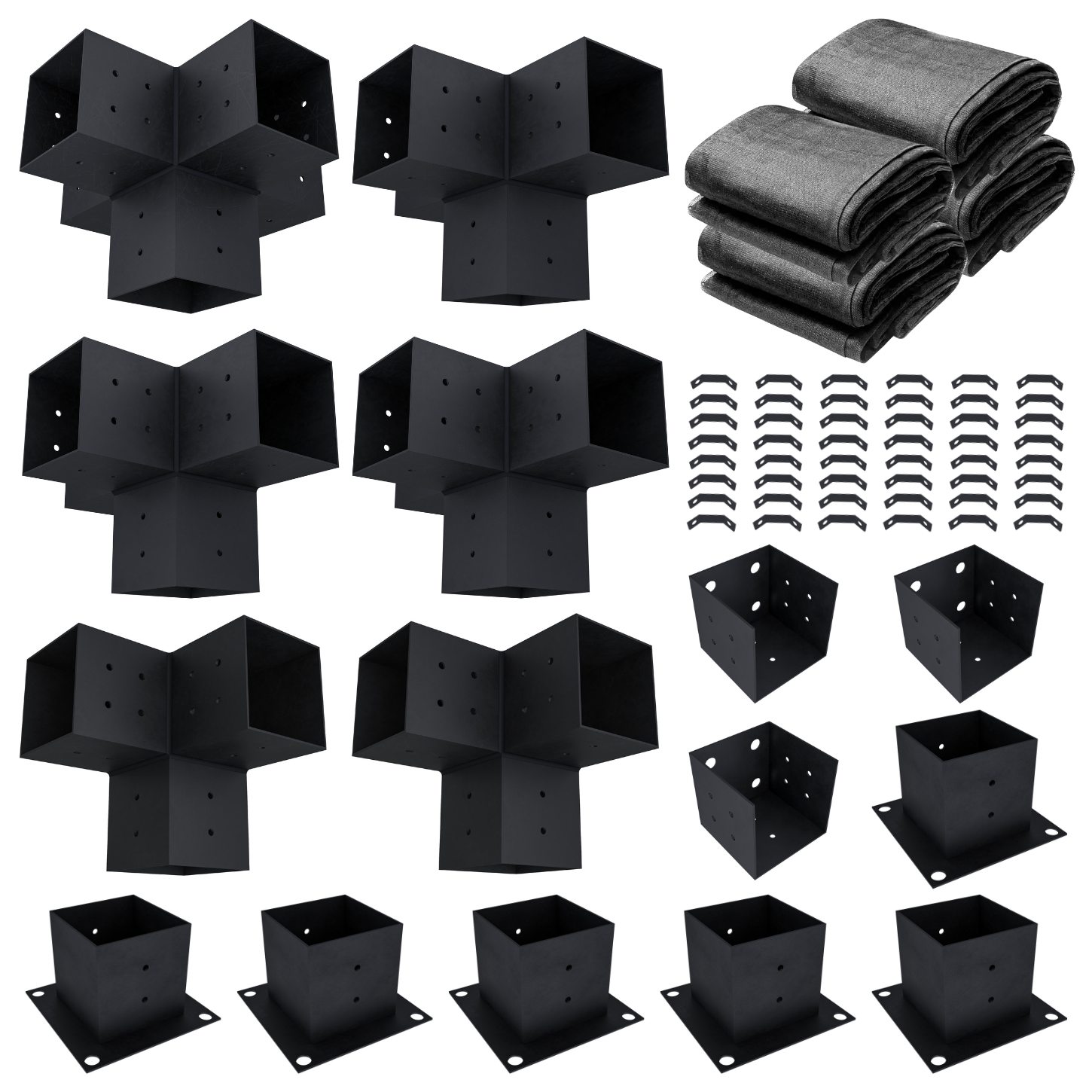

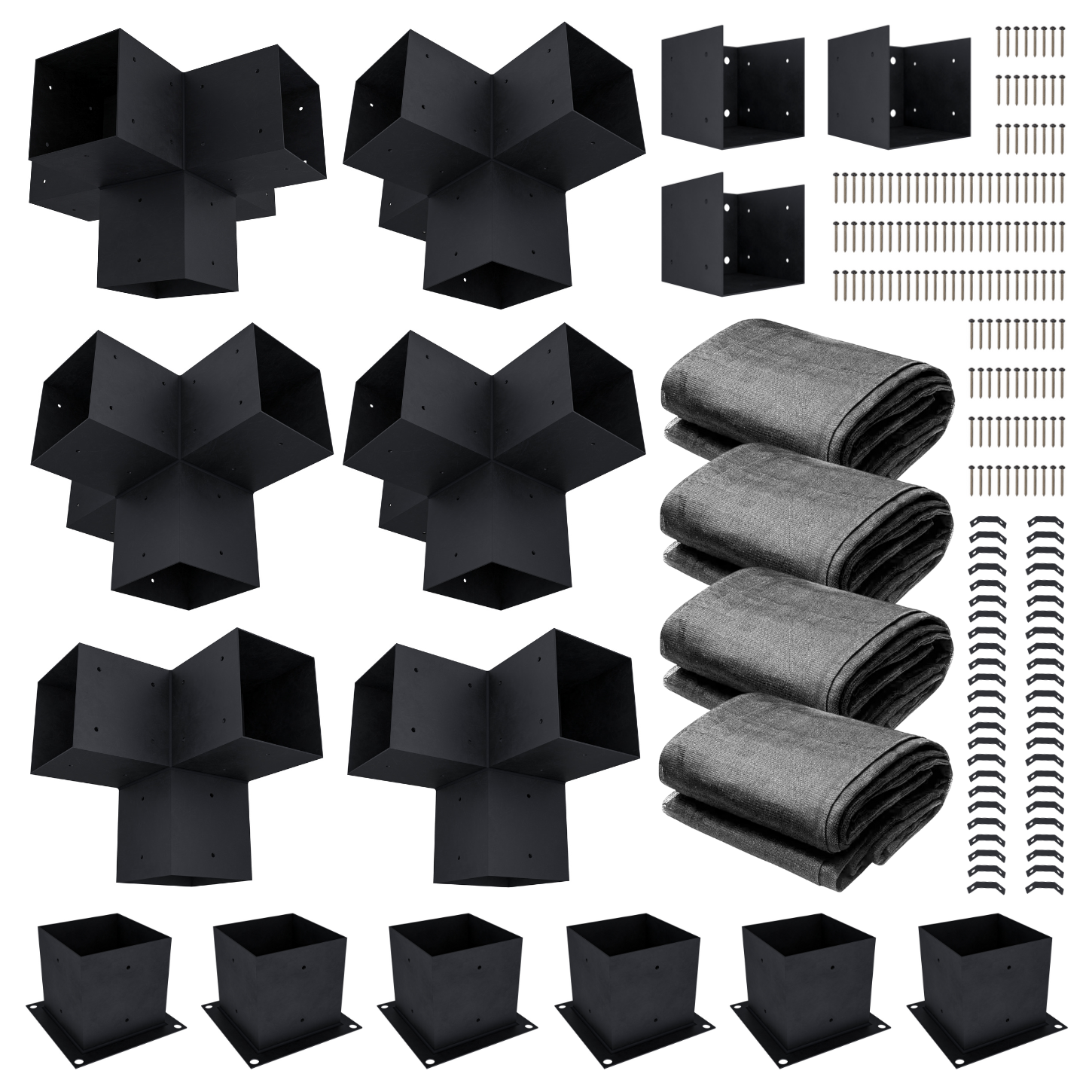

What's Included
Post Base Brackets: Six post base brackets.
Wall Mount Brackets: Three wall mount brackets.
Corner Brackets: Two corner 3-arm brackets.
Middle Brackets: Three middle 4-arm brackets.
Central Bracket: One central 5-arm bracket.
Shade Canopies: Four shade canopies with mounting brackets.
Wood Screws: Stainless steel #12 wood screws.
Canopy Mounting Hardware: Mounting brackets and screws for securing canopy straps to the pergola's corner brackets and roof beams.
Installation and Compatibility
Lumber: Wood lumber is not included and must be purchased separately.
Anchoring Hardware: Hardware for anchoring the post base brackets and wall mount brackets is not included and must be purchased separately.
Included Screws: Stainless steel wood screws are included with the kit.
Lumber Sizes: Zen Pergola Brackets are made to fit common lumber sizes, including 4x4s, 6x6s, 2x4s, and 2x6s.
Warranty
Pergola Brackets: Five-year warranty.
Shade Canopies: One-year warranty.
Frequently Asked Questions
What size pergola can this kit support?
The kit is designed for a four-block attached pergola of any size up to 24' x 24'.
What post bracket sizes are available?
You can choose between 4x4 and 6x6 brackets.
What shade canopy sizes are available?
Available canopy sizes are 8x8, 8x10, 8x12, 10x10, 10x12, and 12x12.
Are the lumber and anchoring hardware included?
No. Lumber and anchoring hardware for the post base brackets and wall mount brackets are not included.
Are screws included?
Yes. The kit includes stainless steel #12 wood screws, as well as mounting brackets and screws for the shade canopy straps.
How much UV protection do the shade canopies provide?
The shade canopies block up to 95% of harmful UV rays.
Are the shade canopies waterproof?
The canopies are semi-permeable to help prevent rain from pooling on top.
